New in Electric

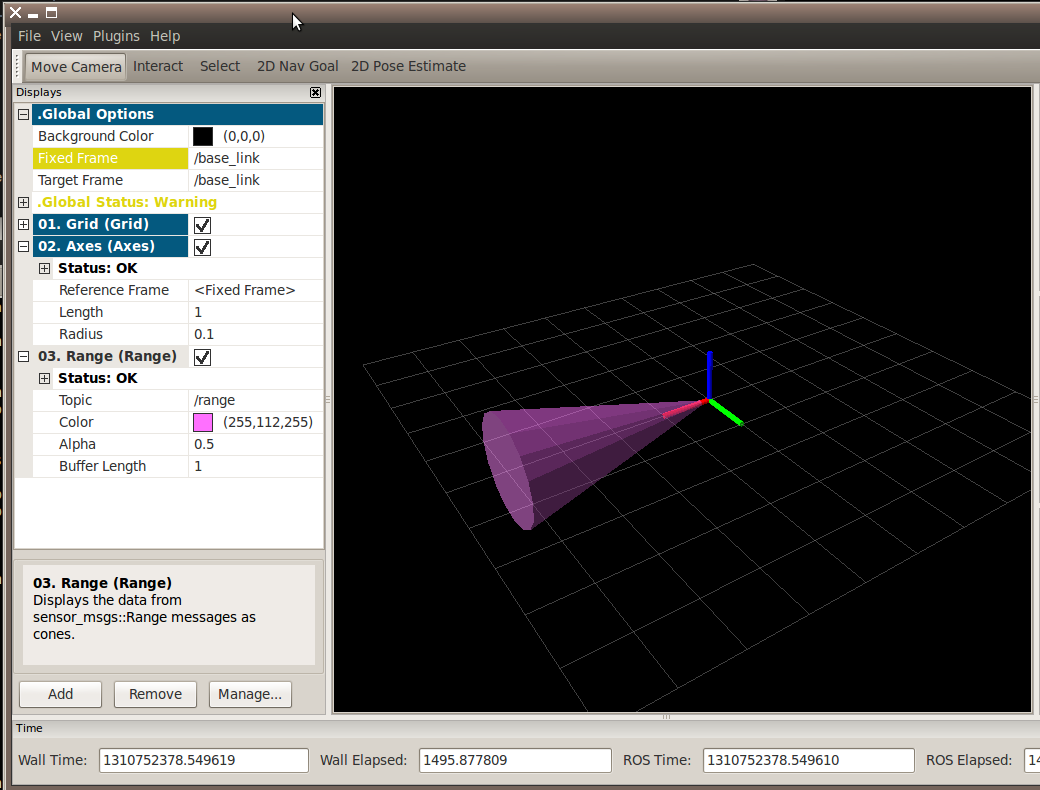

The Range display shows range measurements. Each one is a cone starting at the origin of the frame given in the header of the sensor_msgs/Range message and fanning out in the +X direction of that frame.
To display multiple ranges (like from a robot with several sonars), publish a TF frame at each sonar location. Publish the range messages with the corresponding frame_id in each header. Then in rviz, in the Range display properties, set "Buffer Length" to the number of range sensors on your robot.
Properties |
|||
Name |
Description |
Valid Values |
Default |
Topic |
The topic on which to listen for Range messages. |
|
|
Color |
The color of the range cones |
|
|
Alpha |
Opacity of the range cones, 0 is transparent, 1 is opaque. |
0-1 |
0.5 |
Buffer Length |
The number of range measurements to show on this topic. Only the most recent (Buffer Length) cones will be shown. |
1+ |
1 |
