Joint Trajectory Controller

Purpose

This tutorial shows how to use the joint_trajectory_controller to move the arm of ARI. The action can be used to give a trajectory to the arm expressed in several waypoints.

Pre-requisites

First make sure that the tutorials are properly installed along with the ARI simulation, as shown in the Tutorials Installation Section.

Available interfaces

There are two mechanisms for sending trajectories to the controller, as written in joint_trajectory_controller. By means of the action interface or the topic interface. Both use the trajectory_msgs/JointTrajectory message to specify trajectories.

For the ARI the following interfaces are available:head control, arm left control, arm right control, hand right control, hand left control. The following interfaces are used.

Head controller

The 2 joints of the head can be controlled defining trajectories using the following interfaces:

/head_controller/command (trajectory_msgs/JointTrajectory)

• Topic interface to move the head

• Action interface to move the head

Arm left controller

Trajectories for the 4 joints of the left arm can be controlled using the following interfaces:

/arm_left_controller/command (trajectory_msgs/JointTrajectory)

• Topic interface to move the left arm

• Action interface to move the left arm

Arm right controller

Trajectories for the 4 joints of the right arm can be controlled using the following interfaces:

/arm_right_controller/command (trajectory_msgs/JointTrajectory)

• Topic interface to move the right arm

• Action interface to move the right arm

Hand right controller

The joint of the right hand can be controlled using the following interfaces:

/hand_right_controller/command (trajectory_msgs/JointTrajectory)

• Topic interface to move the right hand

• Action interface to move the right hand

Hand left controller

The joint of the left hand can be controlled using the following interfaces:

/hand_left_controller/command (trajectory_msgs/JointTrajectory)

• Topic interface to move the left hand

• Action interface to move the left hand

Execution

Open two consoles and source the public simulation workspace as follows:

• $ cd ~/ari_public_ws
  $ source ./devel/setup.bash

Launching the simulation

In the first console launch for example the following simulation

•  roslaunch ari_gazebo ari_gazebo.launch public_sim:=true world:=empty

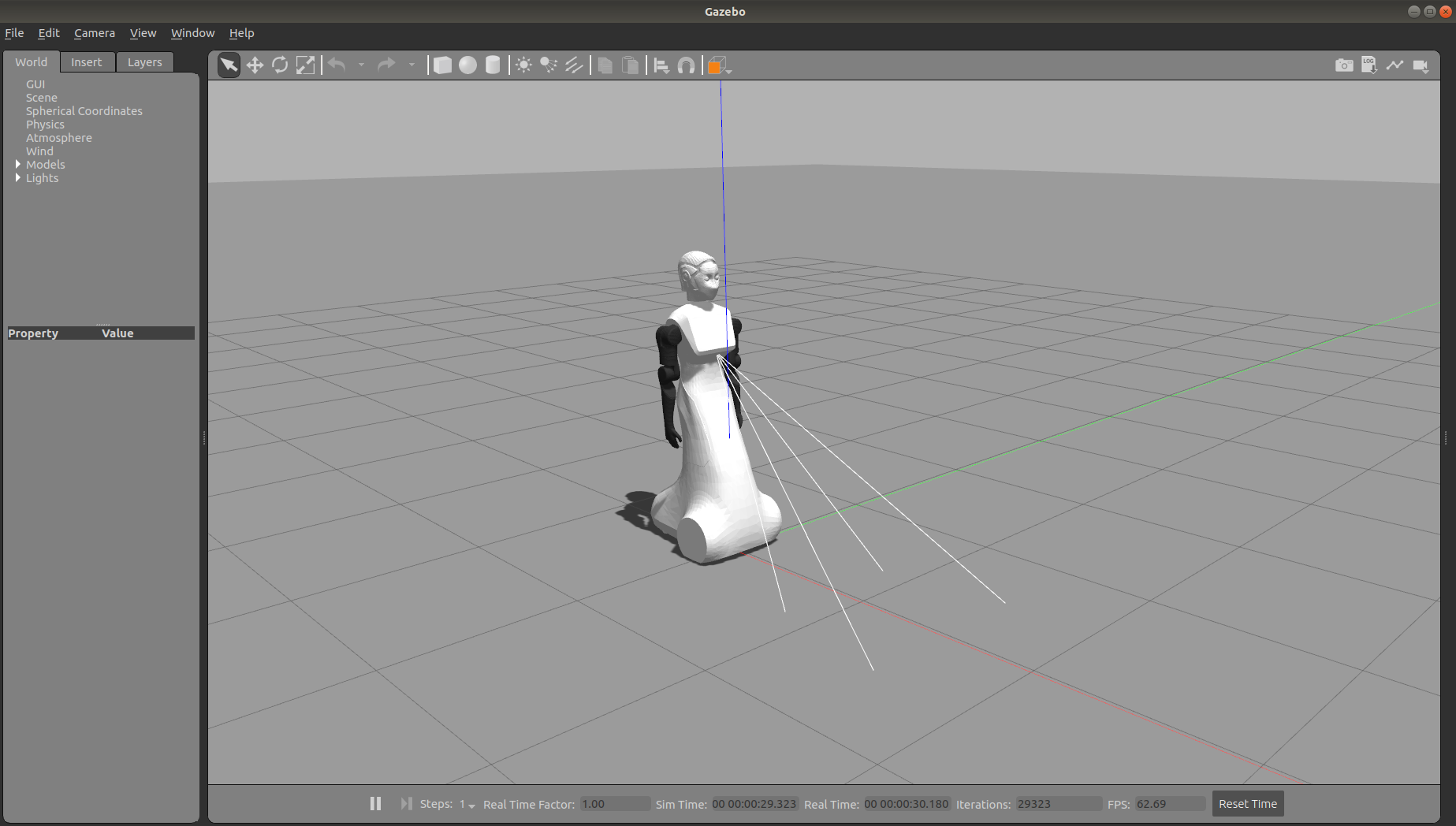

Gazebo will show up with ARI in an empty world.

Launching the nodes

Now we are going to run an example with two waypoints that will bring ARI to the following joint space configurations of the right arm. First waypoint:

• arm_1_joint: 0.65
  arm_2_joint: 0.35
  arm_3_joint: 0
  arm_4_joint: 0

Second waypoint:

• arm_1_joint: 1.13
  arm_2_joint: 0.17
  arm_3_joint: 0
  arm_4_joint: 0

The node that will take care to execute the set of waypoints to reach such a kinematic configuration is run_traj_control included in ari_trajectory_controller package and has to be called as follows

• rosrun ari_trajectory_controller run_traj_control

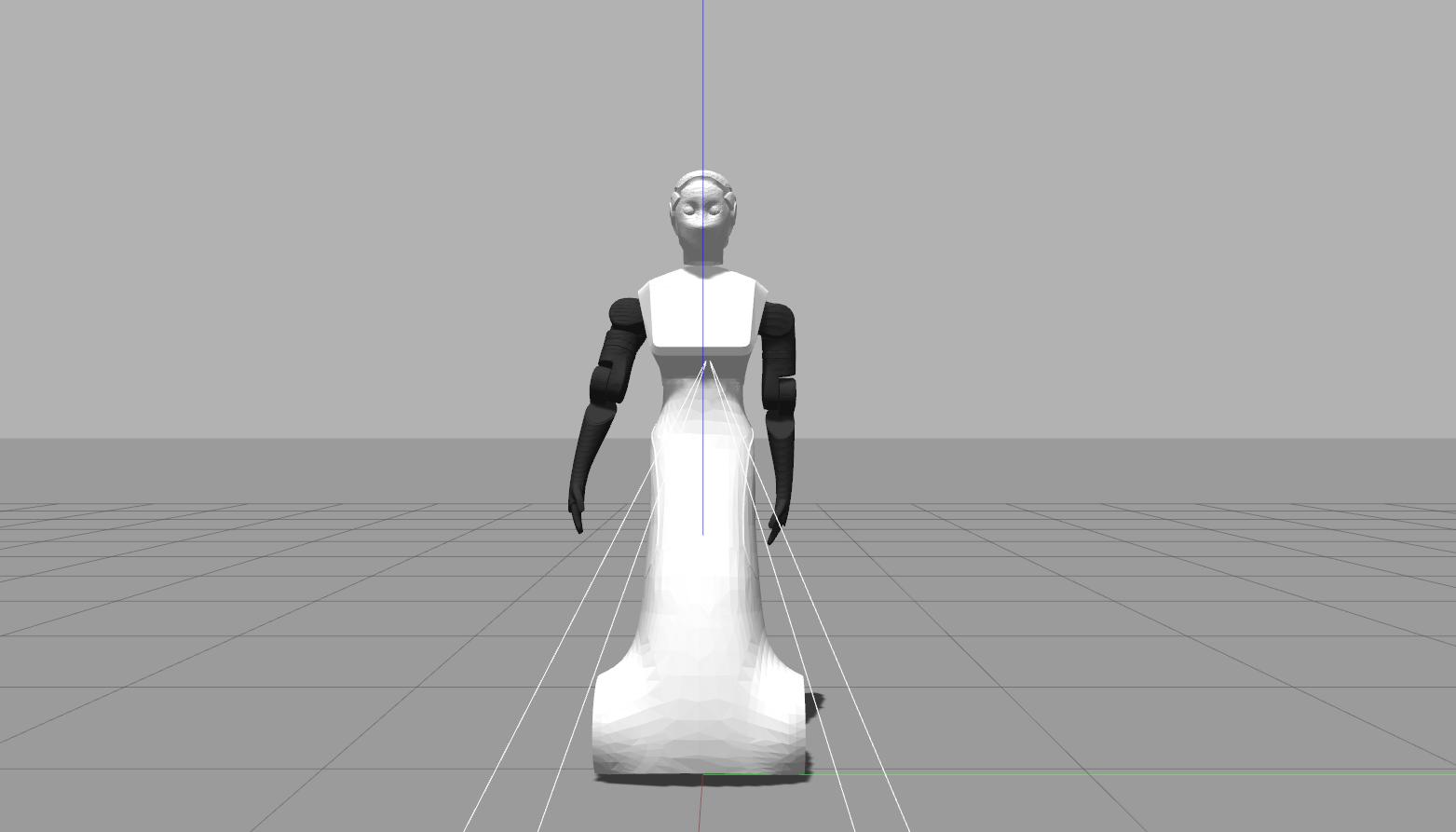

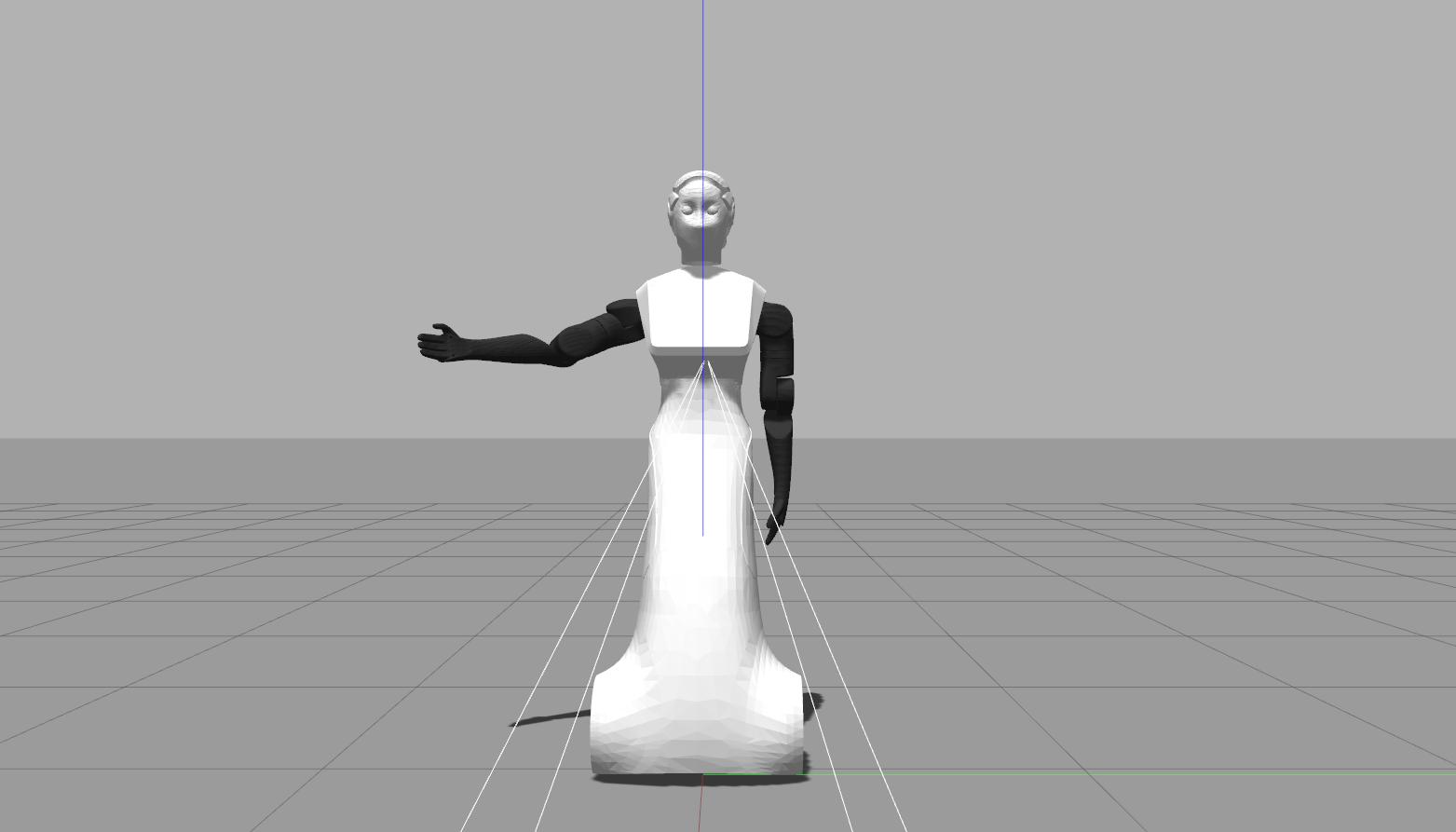

An example of plan executed by the node is depicted in the following sequence of images:

Inspecting the code

The code to implement such a node is shown below. Note that the key parts of the code are:

• Create an arm controller action client
• Wait for arm controller action server to come up
• Generates a simple trajectory with two waypoints (goal)
• Sends the command to start the given trajectory
• Give time for trajectory execution

     1 // C++ standard headers
     2 #include <exception>
     3 #include <string>
     4
     5 // Boost headers
     6 #include <boost/shared_ptr.hpp>
     7
     8 // ROS headers
     9 #include <ros/ros.h>
    10 #include <actionlib/client/simple_action_client.h>
    11 #include <control_msgs/FollowJointTrajectoryAction.h>
    12 #include <ros/topic.h>
    13
    14
    15 // Our Action interface type for moving ARI's head, provided as a typedef for convenience
    16 typedef actionlib::SimpleActionClient<control_msgs::FollowJointTrajectoryAction> arm_control_client;
    17 typedef boost::shared_ptr< arm_control_client>  arm_control_client_Ptr;
    18
    19
    20 // Create a ROS action client to move ARI's right arm
    21 void createArmClient(arm_control_client_Ptr& actionClient)
    22 {
    23   ROS_INFO("Creating action client to arm controller ...");
    24
    25   actionClient.reset( new arm_control_client("/arm_right_controller/follow_joint_trajectory") );
    26
    27   int iterations = 0, max_iterations = 3;
    28   // Wait for arm controller action server to come up
    29   while( !actionClient->waitForServer(ros::Duration(2.0)) && ros::ok() && iterations < max_iterations )
    30   {
    31     ROS_DEBUG("Waiting for the arm_right_controller_action server to come up");
    32     ++iterations;
    33   }
    34
    35   if ( iterations == max_iterations )
    36     throw std::runtime_error("Error in createArmClient: arm controller action server not available");
    37 }
    38
    39
    40 // Generates a simple trajectory with two waypoints to move ARI's arm
    41 void waypoints_arm_goal(control_msgs::FollowJointTrajectoryGoal& goal)
    42 {
    43   // The joint names, which apply to all waypoints
    44   goal.trajectory.joint_names.push_back("arm_right_1_joint");
    45   goal.trajectory.joint_names.push_back("arm_right_2_joint");
    46   goal.trajectory.joint_names.push_back("arm_right_3_joint");
    47   goal.trajectory.joint_names.push_back("arm_right_4_joint");
    48
    49
    50   // Two waypoints in this goal trajectory
    51   goal.trajectory.points.resize(2);
    52
    53   // First trajectory point
    54   // Positions
    55   int index = 0;
    56   goal.trajectory.points[index].positions.resize(4);
    57   goal.trajectory.points[index].positions[0] = 0.65;
    58   goal.trajectory.points[index].positions[1] = 0.35;
    59   goal.trajectory.points[index].positions[2] = 0;
    60   goal.trajectory.points[index].positions[3] = 0;
    61   // Velocities
    62   goal.trajectory.points[index].velocities.resize(4);
    63   for (int j = 0; j < 4; ++j)
    64   {
    65     goal.trajectory.points[index].velocities[j] = 1.0;
    66   }
    67   // To be reached 3 second after starting along the trajectory
    68   goal.trajectory.points[index].time_from_start = ros::Duration(3.0);
    69
    70   // Second trajectory point
    71   // Positions
    72   index += 1;
    73   goal.trajectory.points[index].positions.resize(4);
    74   goal.trajectory.points[index].positions[0] = 1.13;
    75   goal.trajectory.points[index].positions[1] = 0.17;
    76   goal.trajectory.points[index].positions[2] = 0;
    77   goal.trajectory.points[index].positions[3] = 0;
    78   // Velocities
    79   goal.trajectory.points[index].velocities.resize(4);
    80   for (int j = 0; j < 4; ++j)
    81   {
    82     goal.trajectory.points[index].velocities[j] = 0.0;
    83   }
    84   // To be reached 6 seconds after starting along the trajectory
    85   goal.trajectory.points[index].time_from_start = ros::Duration(6.0);
    86 }
    87
    88
    89 // Entry point
    90 int main(int argc, char** argv)
    91 {
    92   // Init the ROS node
    93   ros::init(argc, argv, "run_traj_control");
    94
    95   ROS_INFO("Starting run_traj_control application ...");
    96
    97   // Precondition: Valid clock
    98   ros::NodeHandle nh;
    99   if (!ros::Time::waitForValid(ros::WallDuration(10.0))) // NOTE: Important when using simulated clock
   100   {
   101     ROS_FATAL("Timed-out waiting for valid time.");
   102     return EXIT_FAILURE;
   103   }
   104
   105   // Create an arm controller action client to move the ARI's right arm
   106   arm_control_client_Ptr ArmClient;
   107   createArmClient(ArmClient);
   108
   109   // Generates the goal for the ARI's right arm
   110   control_msgs::FollowJointTrajectoryGoal arm_goal;
   111   waypoints_arm_goal(arm_goal);
   112
   113   // Sends the command to start the given trajectory 1s from now
   114   arm_goal.trajectory.header.stamp = ros::Time::now() + ros::Duration(1.0);
   115   ArmClient->sendGoal(arm_goal);
   116
   117   // Wait for trajectory execution
   118   while(!(ArmClient->getState().isDone()) && ros::ok())
   119   {
   120     ros::Duration(4).sleep(); // sleep for four seconds
   121   }
   122
   123   return EXIT_SUCCESS;
   124 }


Note that for the first waypoint, for each joint in the trajectory, we use a velocity of 1.0 m/s. It specifies the velocity of the trajectory when reaching the waypoint. We obtain it with the following line of code

  65     goal.trajectory.points[index].velocities[j] = 1.0;

As we want the robot to move smoothly when reaching the first target waypoint. By setting the velocity to 0.0 m/s will cause a step-wise movement, where the robot will stop in each waypoint. We set the velocity to 0.0 m/s just for the last waypoint.

The joint_trajectory_controller will map the position+velocity trajectory to position commands through a PID loop.

Joint trajectory messages allow to specify the time at which the trajectory should start executing by means of the header timestamp. In the following line of code, the node will start the given trajectory 1s from "now"

 114   arm_goal.trajectory.header.stamp = ros::Time::now() + ros::Duration(1.0);

The required control commands are sent to the arm controller through the topic of their action interfaces:

• /arm_right_controller/follow_joint_trajectory
