Moving the base through velocity commandsDescription: This tutorial shows how to move the base by sending velocity commands to the appropriate topic.
Keywords: teleoperation, mobile base, key_teleop
Tutorial Level: BEGINNER
Next Tutorial: Joint Trajectory Controller
This tutorial shows how to send velocity commands to the mobile base controller through the topic
which is of type geometry_msgs/Twist. A twist is composed of:
geometry_msgs/Vector3 linear geometry_msgs/Vector3 angular
therefore, it is specified by a linear velocity vector and an angular velocity vector.
First make sure that the tutorials are properly installed along with the ARI simulation, as shown in the Tutorials Installation Section.
First open two consoles and source the public simulation workspace as follows:
$ cd ~/ari_public_ws $ source ./devel/setup.bash
Launching the simulation
In the first console launch for example the following simulation
roslaunch ari_gazebo ari_gazebo.launch public_sim:=true world:=empty

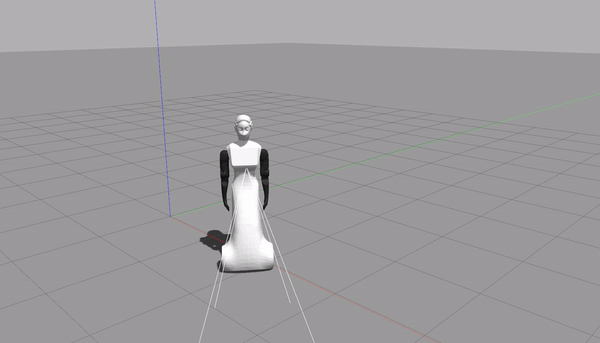

Gazebo will show up with ARI in an empty world
Sending velocity commands through command line
This section shows how to command the differential drive base of ARI through ROS topics.
Moving forward and backward
In the second console run the following instruction which will publish a constant linear velocity of 0.5 m/s along the X axis, i.e. the axis of the robot pointing forward
rostopic pub /mobile_base_controller/cmd_vel geometry_msgs/Twist "linear: x: 0.5 y: 0.0 z: 0.0 angular: x: 0.0 y: 0.0 z: 0.0" -r 3
rostopic pub /mobile_base_controller/cmd_vel geometry_msgs/Twist -r 3 -- '[0.5,0.0,0.0]' '[0.0, 0.0, 0.0]'
Note that the argument -r 3 specifies that the message will be published 3 times per second. This is necessary to maintain a constant speed as the mobile_base_controller only applies a given velocity for less than a second for safety reasons. The idea is that client that wants to move the mobile base keeps publishing the desired speeds, otherwise, if the client dies, the latest sent velocities would still be applied possibly leading to a collision with the environment.
In order to move backwards it is only necessary to set a negative sign on the x component of the linear velocity vector of the Twist message.
Turning left an right
In order to make ARI rotate leftwards the following command has to be published:
rostopic pub /mobile_base_controller/cmd_vel geometry_msgs/Twist "linear: x: 0.0 y: 0.0 z: 0.0 angular: x: 0.0 y: 0.0 z: 0.3" -r 3
rostopic pub /mobile_base_controller/cmd_vel geometry_msgs/Twist -r 3 -- '[0.0,0.0,0.0]' '[0.0, 0.0, 0.6]'
This will make ARI rotate about itself leftwards at 0.6 rad / s.
In order to turn rightwards the sign of the z angular velocity component needs to be inverted.
