Introduction, usage

With opencv_apps, you can run a lot of functionalities OpenCV provides in the simplest manner in ROS, i.e., running a launch file that corresponds to the functionality.

  • You can have a look at all launch files provided here (be sure to choose the correct branch. As of Sept. 2016 indigo branch is used for ROS Indigo, Jade, and Kinetic distros).

  • Some of the features covered by opencv_apps are explained in this wiki.

Edge Detection Nodes

edge_detection

Apply edge detecion algorithm to input and output ROS sensor_msgs/Image topics.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • Ouptut edge image.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image
~edge_type (int, default: 0) ~canny_threshold1 (int, default: 100)
  • Specify second canny threashold value.
~canny_threshold2 (int, default: 200)
  • Specity first canny threashold value.
~apertureSize (int, default: 3)
  • Aperture size for the Sobel() operator.
~apply_blur_pre (bool, default: True)
  • Flag, applygin Blur() to input image
~postBlurSize (int, default: 13)
  • Aperture size for the Blur() to input image()
~postBlurSigma (int, default: 3.2) ~apply_blur_post (bool, default: False) ~L2gradient (bool, default: False)

Edge detection examples

Outputs of Sobel Derivatives

Outputs of Laplace Operator

Outputs of Sobel Canny Edge Detector

Outputs of Sobel Derivatives

Outputs of Laplace Operator

Outputs of Sobel Canny Edge Detector

hough_lines

Apply Hough Transform to the input ROS sensor_msgs/Image and outputs detected lines as ROS opencv_apps/LineArrayStamped messages. See HoughLines_Demo.cpp for more info.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image which indicates detected lines
lines (opencv_apps/LineArrayStamped)
  • Array of detected lines in image coordiinates.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image
~hough_type (int, default: 0)
  • Apecify Hough transform type, 0 for Standard Hough Detection and 1 for Probabilistic Hough Detection
~threshould (int, default: 150)
  • Threshould value for hough line detection
~rho (double, default: 1.0)
  • The resolution of the parameter r in pixels.
~theta (double, default: 1.0)
  • The resolution of the parameter theta in radians.
~minLineLength (double, default: 30)
  • The minimum number of points that can form a line.
~maxLineGrap (double, default: 10)
  • The maximum gap between two points to be considered in the same line.

Hough transformation Line detection

Standard Hough Lines

Probabilistic Hough Lines

Outputs of Standard Hough Deteciton

Outputs of Probabilistic Hough Detection

hough_circles

Apply Hough Circle Transform to the input ROS sensor_msgs/Image and outputs detected lines as ROS opencv_apps/CircleArrayStamped messages. See HoughCircle_Demo.cpp for more info.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image which indicates detected circles
circles (opencv_apps/CircleArrayStamped)
  • Array of detected circles in image coordiinates.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image
~canny_threshold (int, default: 200)
  • Upper threshold for the internal Canny edge detector.
~accumulator_threshold (int, default: 50)
  • Threshold for center detection.
~gaussian_blur_size (int, default: 9)
  • The size of gaussian blur (should be odd number)
~gaussian_sigma_x (double, default: 2)
  • sigma x of gaussian kernel
~gaussian_sigma_y (double, default: 2)
  • sigma y of gaussian kernel
~dp (int, default: 2)
  • The inverse ratio of resolution
~min_circle_radius (int, default: 0)
  • the minimum size of the circle. If unknown, put zero as default.
~max_circle_radius (int, default: 0)
  • the maximum size of the circle. If unknown, put zero as default.

Hough transformation Circle detection

Standard Hough Circles

Outputs of Circle Hough Deteciton

Structual Analysis Nodes

find_contours

Find Contours to the input ROS sensor_msgs/Image and to find contours and outpus as ROS opencv_apps/ContoursArrayStamped messages. See findContours_Demo.cpp for more info.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image which indicates detected contours
contours (opencv_apps/ContourArrayStamped)
  • Detected contours. Each contour is stored as a vector of point

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image
~canny_low_threshold (int, default: 10)
  • Lower threshold for the internal Canny edge detector.

convex_hull

Apply Convex Hull to the input ROS sensor_msgs/Image and to find contours and outpus as ROS opencv_apps/ContoursArrayStamped messages. See hull_demo.cpp for more info

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image which indicates detected convex hulls
hulls (opencv_apps/ContourArrayStamped)
  • Detected convex hulls of contours. Each contour is stored as a vector of point

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image
~threshold (int, default: 100)
  • Treshold for the detecting edges.

general_contours

Creating Bounding rotated boxes and ellipses for contours to the input ROS sensor_msgs/Image and outpus as ROS opencv_apps/RotatedRectArrayStamped messages. See generalContours_demo2.cpp for more info.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image which indicates detected contours as bobxes or ellipses
rectangles (opencv_apps/RotatedRectArrayStamped)
  • Bounding rotated boxes of contours.
ellipses (opencv_apps/RotatedRectArrayStamped)
  • Bounding rotated ellipses of contours.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image
~threshold (int, default: 100)
  • Treshold for the detecting edges.

contour_moments

Calculating Image Moment of the input ROS sensor_msgs/Image and outpus as ROS opencv_apps/MomentArrayStamped messages. See moments_demo.cpp for more info.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image which indicates detected contours
moment (opencv_apps/MomentArrayStamped)
  • Image moments of contours.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image
~canny_low_threshold (int, default: 100)
  • Canny Edge low Threshold

Contours Moments

Find Contours

Find Convex Hull

Find contours

Convex Hull of contours

Find general contours

contour Moments

Bounding rotated boxe and ellipses for contours

Example of Image Moments Calculation

People/Face Detection Nodes

face_detection

Detect faces in ROS sensor_msgs/Image using Cascade Classifier and outputs detected faces as ROS opencv_apps/FaceArrayStamped message. See objectDetection.cpp for more info.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image which indicates detected faces position as a circle
faces (opencv_apps/FaceArrayStamped)
  • Array of detected face location in image coordiinates.
face_image (sensor_msgs/Image)
  • A cropped image of detected faces

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: true)
  • Specify whether the node displays a window to show edge image
~face_cascade_name (string, default: "/usr/share/opencv/haarcascades/haarcascade_frontalface_alt.xml")
  • Face dtection cascade Filename
~eyes_cascade_name (string, default: "/usr/share/opencv/haarcascades/haarcascade_eye_tree_eyeglasses.xml")
  • Eye dtection cascade Filename

Face Detection

Face Detection

Example of Face Detection

face_recognition

Recognize faces in ROS sensor_msgs/Image using Face Recognition and outputs detected faces with labels as ROS opencv_apps/FaceArrayStamped message. See Tutorials for more info.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.
faces (opencv_apps/FaceArrayStamped)
  • Array of detected face location in image coordiinates.

Published Topics

~output (opencv_apps/FaceArrayStamped)
  • A copy of input image which indicates detected faces position as a circle
~debug_image (sensor_msgs/Image)
  • A copy of input image which indicates detected faces' positions, labels and confidences

Parameters

~approximate_sync (bool, default: false)
  • Approximately synchronize messages of input image and face array
~queue_size (int, default: 100)
  • Size of queue for subscribing topics
~model_method (string, default: "eigen")
  • Method for face recognition (Either "eigen", "fisher" or "LBPH")
~use_saved_data (bool, default: true)
  • Load and train data from path specified by ~data_dir
~save_train_data (bool, default: true)
  • Save train data to path specified by ~data_dir for retraining
~data_dir (string, default: "~/.ros/opencv_apps/face_data")
  • Path to directory for saving train data
~face_model_width (int, default: 190)
  • Width of training face image
~face_model_height (int, default: 90)
  • Height of training face image
~face_padding (double, default: 0.1)
  • Padding ratio for each face
~model_num_components (int, default: 0)
  • Number of components for face recognizer model (0 is treated as unlimited)
~model_threshold (double, default: 8000.0)
  • Threshold for face recognizer model
~lbph_radius (int, default: 1)
  • Radius parameter (available only for LBPH model)
~lbph_neighbors (int, default: 8)
  • Neighbors parameter (available only for LBPH model)
~lbph_grid_x (int, default: 8)
  • grid_x parameter (available only for LBPH model)
~lbph_grid_y (int, default: 8)
  • grid_y parameter (available only for LBPH model)

Face Recognition

Face Recognition

Example of Face Recognition

people_detect

Detecting people using Histogram of Oriented Gradients(HOG)]. This node outputs <<MsgLink(opencv_apps::RectArrayStamped)>> message. See [[https://github.com/Itseez/opencv/blob/2.4/samples/cpp/peopledetect.cpp for more info

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image which indicates detected people position as a box
found (opencv_apps/RectArrayStamped)
  • Array of detected people location in image coordiinates.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image
~hit_threshold (double, default: 0)
  • Threshold for the distance between features and SVM classifying plane
~win_stride (int, default: 8)
  • Window stride. It must be a multiple of block stride.
~padding (int, default: 32)
  • Mock parameter to keep the CPU interface compatibility. It must be (0,0).
~scale0 (double, default: 1.05)
  • Coefficient of the detection window increase.
~group_threshold (int, default: 2)
  • Coefficient to regulate the similarity threshold. When detected, some objects can be covered by many rectangles. 0 means not to perform grouping.

HoG based People Detection

lk flow

Example of People Detection

Motion Analysis Nodes

goodfeature_track

Determines strong corners on input ROS sensor_msgs/Image using goodFeatureToTrack and outputs detected corners as ROS opencv_apps/Point2DArrayStamped message. See goodFeaturesToTrack_Demo.cpp for more info.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image which indicates detected corners
corners (opencv_apps/Point2DArrayStamped)
  • Array of detected corner location in image coordiinates.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image
~max_corners (int, default: 23)
  • Maximum number of corners to return. If there are more corners than are found, the strongest of them is returned.

Good Features to Track

Good Features to Track

Example of Good Features to Track

camshift

Find an object center, size and orientation of a input ROS sensor_msgs/Image using CamShift algorithm and outputs detected object as ROS invalid message type for MsgLink(msg/type) message. See camshiftdemo.cpp for more info.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image which indicates detected object as a ellipse
back_project (sensor_msgs/Image)
  • Back projection of the object histogram.
track_box (opencv_apps/RotatedRectStamped)
  • Detected objects

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image
~histogram (array, default: [])
  • Histogram of tracked color object
~vmin (int, default: 10)
  • Min threshould of lightness.
~vmax (int, default: 256)
  • Max threshould of lightness.
~smin (int, default: 30)
  • Min value of saturation.

Camshift

Camshift Result

Camshift Back Project

Outputs of Camshift Results

Outputs of Camshift Back Projection of the object histogram

fback_flow

Calculate dense opetical flow using Gunnar Farneback Algorithm. This node outputs invalid message type for MsgLink(msg/type) message. See fback.cpp for more info.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image with computed optical flows.
flows (opencv_apps/FlowArrayStamped)
  • Computed optical flows.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image

lk_flow

Calculates an optical flow for a sparse feature set using the iterative Lucas-Kanade method with pyramids and outputs invalid message type for MsgLink(msg/type) message. See lkdemo.cpp for more info

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image with computed optical flows.
flows (opencv_apps/FlowArrayStamped)
  • Computed optical flows.

Services

initialize_points (invalid message type for SrvLink(srv/type))
  • Auto-initialize tracking.
delete_points (invalid message type for SrvLink(srv/type))
  • Delete all the points.
toggle_night_mode (invalid message type for SrvLink(srv/type))
  • switch the night mode on/off.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image

phase_corr

The node detects the translational shift in the frequency domain based on the Fourier shift theorem. See phase_corr.cpp for more info.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image with computed translational shift
shift (opencv_apps/Point2DStamped)
  • Computed translational shift

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image

simple_flow

Calculate dense opetical flow using Simple Flow algorithm. This node outputs invalid message type for MsgLink(msg/type) message. See simpleflow_demo.cpp for more info.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.
flows (opencv_apps/FlowArrayStamped)
  • Computed optical flows.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image with computed optical flows.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image
~scale (int, default: 4)
  • Specify the scale factor to calculate optical flow.

Optical Flow

fback flow

lk flow

Dense Optical Flow using Gunner Farenback Algorithm

Optical Flow for sparse features set using Lucas-Kanade Method

phase correct

simple flow

Translational shift in the frequency domain

Dense optical flow using Simple Flow algorithm

Object Segmentaion Nodes

segment_objects

This node apply Gaussian Mixture-based Background/Foreground Segmentation algorithm to input ROS sensor_msgs/Image and outputs segemted region as opencv_apps/ContourArrayStamped and area as std_msgs/Float64.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image which indicates segmented region
contours (opencv_apps/ContoruArrayStamped)
  • Contours of segmented region.
area (std_msgs/Float64)
  • Number of pixes in segmented area

Services

update_bg_model (invalid message type for SrvLink(srv/type))
  • Update Background Mdoel

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image

watershed_segmentation

This node apply the watershed segmentation algorithm to input ROS sensor_msgs/Image and outputs segemted region as opencv_apps/ContourArrayStamped

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.
contours (opencv_apps/ContourArrayStamped)
  • segmented contours.

Published Topics

image (sensor_msgs/Image)
  • A copy of input image which indicates segmented region.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show edge image

Object Segmentation

segment objects

simple flow

Gaussian Mixture-based Background/Foreground Segmentatoin

Watershed Segmentation

Image Filter Nodes

New feature as of version 1.11.15

rgb_color_filter

This node filters the image by RGB color and generates a mask image.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • Mask image filterd by RGB color.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show mask image
~r_limit_max (int, default: 250)
  • Maximum value of Red
~r_limit_min (int, default: 50)
  • Minimum value of Red
~g_limit_max (int, default: 200)
  • Maximum value of Green
~g_limit_min (int, default: 100)
  • Minimum value of Green
~b_limit_max (int, default: 150)
  • Maximum value of Blue
~b_limit_min (int, default: 20)
  • Minimum value of Blue

hls_color_filter

This node filters the image by HSL color and generates a mask image.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • Mask image filterd by HSL color.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show mask image
~h_limit_max (int, default: 250)
  • Maximum value of Hue
~h_limit_min (int, default: 0)
  • Minimum value of Hue
~s_limit_max (int, default: 255)
  • Maximum value of Saturation
~s_limit_min (int, default: 150)
  • Minimum value of Saturation
~l_limit_max (int, default: 255)
  • Maximum value of Luminance
~l_limit_min (int, default: 50)
  • Minimum value of Luminance

hsv_color_filter

This node filters the image by HSL color and generates a mask image.

Subscribed Topics

image (sensor_msgs/Image)
  • The image topic. Should be remapped to the name of the real image topic.

Published Topics

image (sensor_msgs/Image)
  • Mask image filterd by HSV color.

Parameters

~use_camera_info (bool, default: true)
  • Indicates that the camera_info topic should be subscribed to to get the default input_frame_id. Otherwise the frame from the image message will be used.
~debug_view (bool, default: false)
  • Specify whether the node displays a window to show mask image
~h_limit_max (int, default: 250)
  • Maximum value of Hue
~h_limit_min (int, default: 0)
  • Minimum value of Hue
~s_limit_max (int, default: 255)
  • Maximum value of Saturation
~s_limit_min (int, default: 150)
  • Minimum value of Saturation
~v_limit_max (int, default: 255)
  • Maximum value of Value
~v_limit_min (int, default: 50)
  • Minimum value of Value

Color filter examples

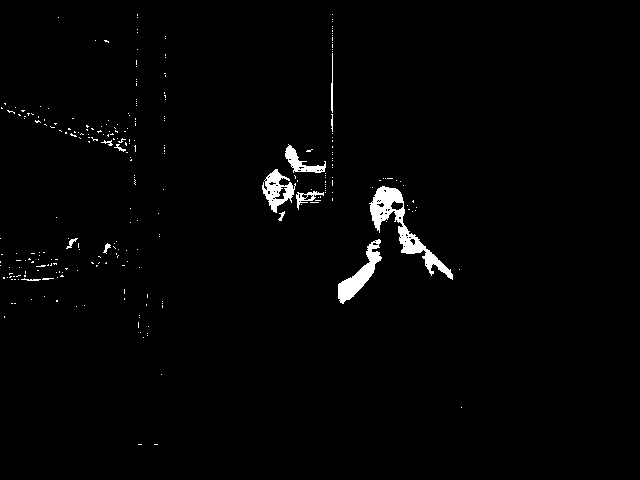

Outputs of RGB color filter

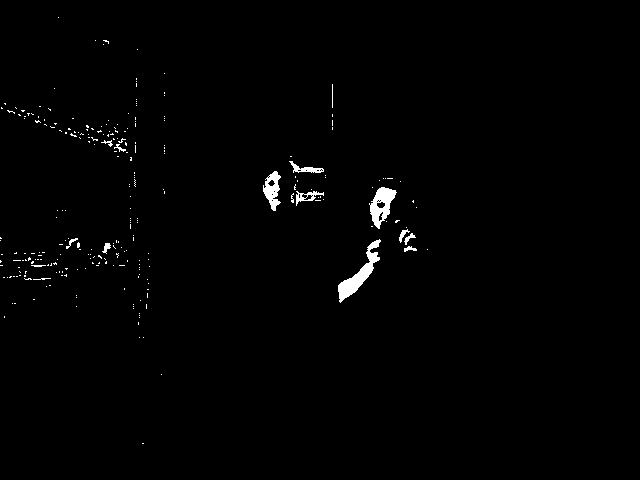

Outputs of HSL color filter

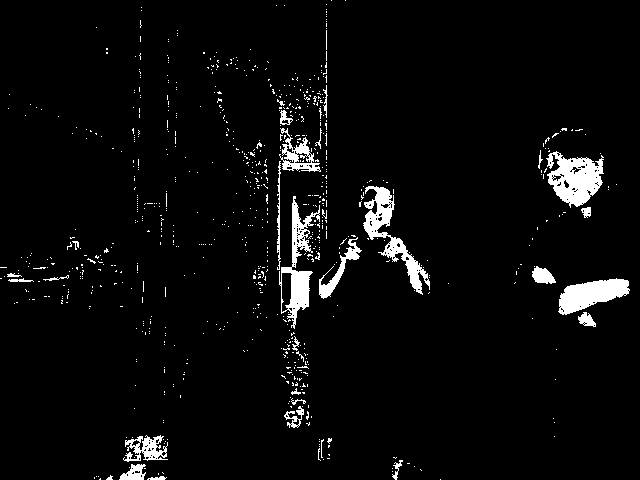

Outputs of HSV color filter

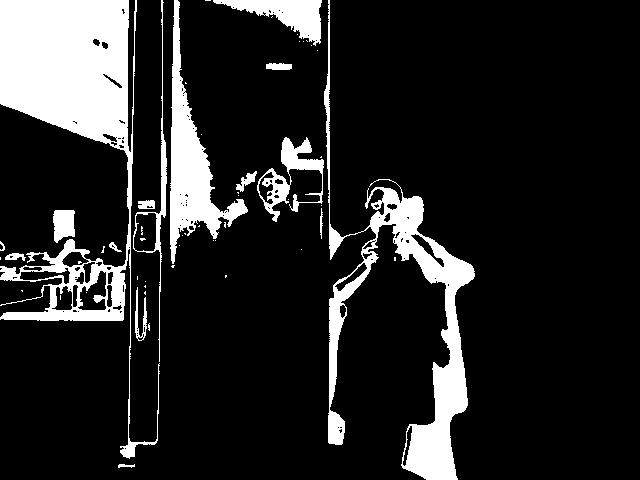

Outputs of RGB color filter

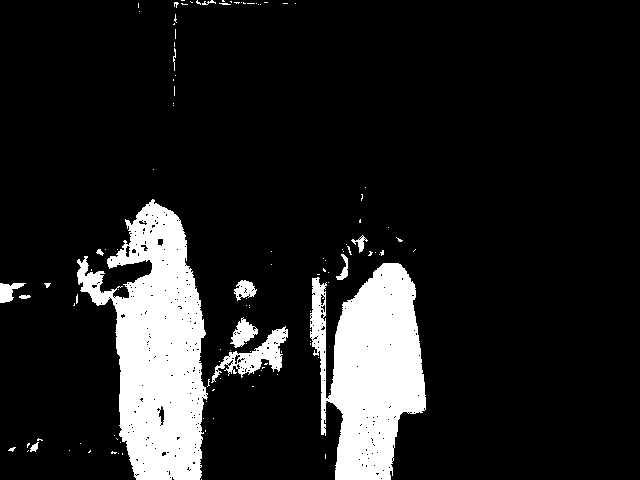

Outputs of HSL color filter

Outputs of HSV color filter

Wiki: opencv_apps (last edited 2018-01-17 19:06:43 by hiro64)
